ANSI/AISC 341-22 Guide: On-Site Seismic Fabrication and Erection Rules for Structural Steel

For structural engineers, fabricators, and erectors working in high-seismic regions, the ANSI/AISC 341-22 standard is the definitive playbook for ensuring steel buildings can withstand earthquake forces. This is not just a design document; it translates complex seismic performance objectives into actionable, on-site rules for material selection, connection detailing, fabrication quality, and erection sequencing. This guide breaks down its core operational requirements into practical steps for field implementation, helping your team move from plan approval to a compliant, resilient structure.

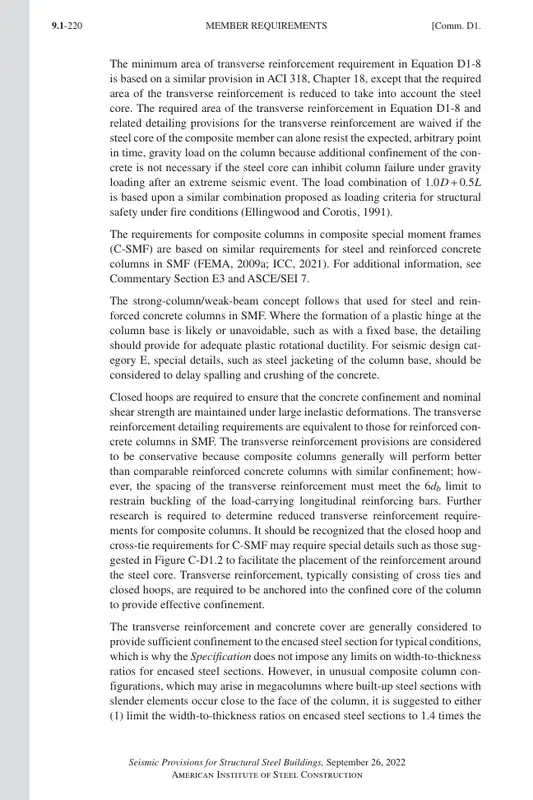

What is ANSI/AISC 341-22 in Field Practice?

On a seismic project, AISC 341-22 is the standard that bridges the gap between the engineer’s calculations and the physical steel structure you build. It defines the “rules of the game” for creating seismic force-resisting systems (SFRS) like special moment frames (SMF) and special concentrically braced frames (SCBF). In practical terms, field professionals encounter it through:
* Construction Managers: Using it to validate that shop drawings and fabrication procedures meet the stringent requirements for seismic detailing.
* Fabrication Shop Foremen: Following its specific protocols for cutting, fitting, and welding critical seismic members and connections.
* Erection Crews & Field Engineers: Ensuring the correct installation sequence, temporary bracing, and final connection methods align with the assumed seismic behavior.
* Inspectors (CWI/Special Inspector): Referencing it as the primary checklist for verifying material certifications, weld procedures, and connection geometries before and during steel erection.

Core On-Site Problems AISC 341-22 Solves

This standard directly addresses critical field risks in seismic construction:
* Preventing Premature Fracture: It mandates strict material toughness (Charpy V-Notch testing) and controls weld quality to prevent brittle failure in connections during cyclic earthquake loading.
* Ensuring Ductile Yielding: Its detailing rules (e.g., required strength of welds vs. base metal, strict tolerances for braced frame connections) force inelastic deformation to occur in designated, ductile elements, not in connections.
* Eliminating Ambiguity in Critical Details: It provides unambiguous, prescriptive requirements for seismic joints, removing guesswork from fabrication and erection. This avoids costly rework and delays when non-compliant pieces arrive on site.

Key Technical & Safety Requirements for Field Teams

Understanding a few core operational differences from non-seismic (AISC 360) work is crucial.

* Material Verification is Non-Negotiable: For columns, beams, and braces in the SFRS, you must have mill test reports confirming Charpy V-Notch impact toughness at a specified temperature. Do not release these materials for fabrication without this documentation. This is a common first-point audit failure.
* “Demand Critical Welds” Require Special Protocols: Welds designated as Demand Critical (typically all welds in SMF joints and SCBF connections) have elevated requirements:
* WPS/PQR: The Welding Procedure Specification (WPS) and supporting Procedure Qualification Record (PQR) must be specifically qualified for seismic applications, often requiring more stringent testing.
* Filler Metal: Must match the required toughness of the base metal.
* Inspection: 100% visual inspection is mandatory, and non-destructive testing (NDT) like ultrasonic testing (UT) is typically required per the structural engineer’s instructions.
* Connection Geometry Tolerances are Tighter: For example, in a Special Concentrically Braced Frame, the work point of braces must align within a very small tolerance. Fabrication shops must implement precise fit-up procedures, and erectors must verify alignment before final welding or bolting.

On-Site Compliance and Regulatory Context

AISC 341 is a referenced standard in the International Building Code (IBC). Compliance is not optional for buildings assigned to Seismic Design Categories D, E, or F.
* The Special Inspector is Your Key Interface: The Special Inspector for structural steel and welding, hired by the owner but reporting to the building official, will use AISC 341-22 as their primary field reference. Their sign-off is required at each phase.
* Documentation Trail: Maintain a dedicated job book for seismic compliance. It should include: Certified Mill Test Reports for all seismic materials, qualified WPS/PQRs for Demand Critical welds, welder qualification records, reports of all NDT, and the Special Inspector’s daily reports.
Regional Comparison: Unlike some regional codes that may prescribe generic detailing rules, AISC 341-22 is performance-based, linking specific detailing and quality requirements to the expected ductility and overstrength of the chosen SFRS. This means you must follow the project-specific* details on the structural drawings, which are governed by this standard.

Target Professionals and Risks of Non-Compliance

Who needs this guide on site? Project Engineers, Fabrication Superintendents, Welding Foremen, Steel Erection Supervisors, and all Special Inspectors.
When is it used? During procurement, fabrication, pre-erection meetings, daily erection activities, and all inspection hold points.

On-site risks of ignoring AISC 341-22 rules include:
* Catastrophic Rework: Rejecting an entire shipment of beams or fabricated connection assemblies due to lack of proper toughness certification.
* Project Stoppage: The Special Inspector will halt erection if Demand Critical welds are made by welders not qualified to the project’s seismic WPS.
* Liability for Structural Failure: In the event of an earthquake, non-compliant work that leads to damage or collapse exposes the construction team to severe legal and financial liability.
* Failed Occupancy Inspections: The building official will not issue a certificate of occupancy without signed reports from the Special Inspector confirming compliance with the referenced standards, including AISC 341.

Step-by-Step On-Site Implementation Workflow

1. Pre-Fabrication Review (Office to Shop):
* Confirm the Contract Documents specify AISC 341-22.
* Review structural drawings to identify all members and connections part of the SFRS (SMF, SCBF, etc.).
* Submit shop drawings for these elements for review, highlighting compliance with standard’s detailing rules.

2. Material Procurement & Verification:
* Order materials for seismic members with explicit reference to the required ASTM grade and Charpy V-Notch toughness requirements.
* Upon delivery, immediately check Mill Test Reports against project requirements before material is moved to storage.

3. Fabrication Control Points:
* Qualify all Welding Procedures (WPS) and welders for “Demand Critical” applications if required.
* Implement enhanced QC during fit-up of seismic connections, verifying strict adherence to specified geometries and tolerances.
* Schedule NDT (UT, MT, PT) for Demand Critical welds as per the inspection and testing plan (IITP).

4. Erection & Field Verification:
* Conduct a pre-erection meeting with the erector and Special Inspector to review sequencing and temporary bracing plans for seismic frames.
* Verify field conditions match assumptions (e.g., anchor rod locations before setting base plates).
* The Special Inspector must observe the completion of all Demand Critical field welds and the installation of all high-strength bolts in seismic connections.

Real-World On-Site Scenario

A field engineer is overseeing the erection of a Special Moment Frame on a mid-rise project in a high-seismic zone. Before the crew begins welding the beam-to-column connections (Demand Critical welds), the engineer must:
1. Verify the welders on site have current qualification cards for the specific WPS being used, which is qualified to AWS D1.8 (the complementary welding code for seismic structures).
2. Confirm the correct, certified filler metal is on the gang box.
3. Ensure the Special Inspector is present to witness the root and final weld passes.
4. Schedule the required ultrasonic testing after welding is complete and the area is safe for the NDT technician.
Skipping any of these steps risks a compliance violation, a stop-work order, and potential removal of the welds for repair.

Common On-Site Misconceptions

* “A D1.1 WPS qualification is sufficient.” For Demand Critical welds in seismic applications, AWS D1.8 imposes additional qualification requirements (like through-thickness tension tests) that a standard D1.1 procedure may not satisfy. Always check the project’s welding specifications.
* “If it fits, it’s good.” In seismic work, fit-up tolerances are critical to achieving the intended force transfer. A forced fit can induce harmful residual stresses. Follow the specified fit-up gaps and alignment tolerances precisely, even if it requires re-adjustment.
